Plaster Stop Bead Machine

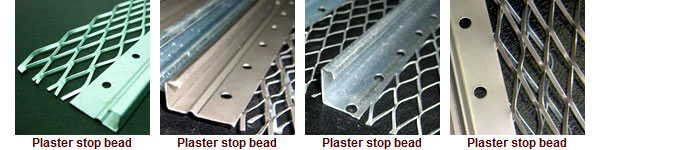

Plaster Stop Bead machine is used to make plaster stop bead. The beads reinforce the edges of plaster and provide a nicer appearance.

Automatic Plaster Stop Bead Machine \| Model: KC-PSB
DESCRIPTION	VOLTAGE	S.P.M	DIMENSIONS	WEIGHT
Main Machine		350-400	About 1 x 1.5 x 1.5 M	About 1500 kg
Un-coiler		Loading Capacity: 1000 kg max
Forming Roller		2 in 1 & 12- Sectional forming rollers
Shear		Hydraulic system
Finished product Gather Rack		Air system
Mold		1 set (12mm x 25mm. or accords to the sample /drawing)
Control Panel		1 set
Tool Box		1 set
A.Raw Material： Galvanized Iron B.Raw material thickness：0.45±0.05mm C.Product：According to the buyer’s sample D.Operation area space：Approximately 1.5M x 15M E.Production:About 525-600 meter per hour (mesh = 12×25mm)

Typical Plaster Stop Bead Application:
Brickwork		Wall		Ceiling		Stucco Reinforcement
