Expanded metal mesh
Expanded metal grating
Expanded metal grating is used as a heavy duty expanded metal. It is commonly used for flooring, platform and catwalk.
width within 1225mm (4 feet)
8x25 mm
large hexagon
17x42 mm
large hexagon
18x50 mm
large hexagon
26x60 mm
large hexagon
21x80 mm
large hexagon
32x135 mm
large hexagon
Expanded metal grating
Expanded metal grating
Expanded metal grating
Expanded metal grating

Expanded metal grating

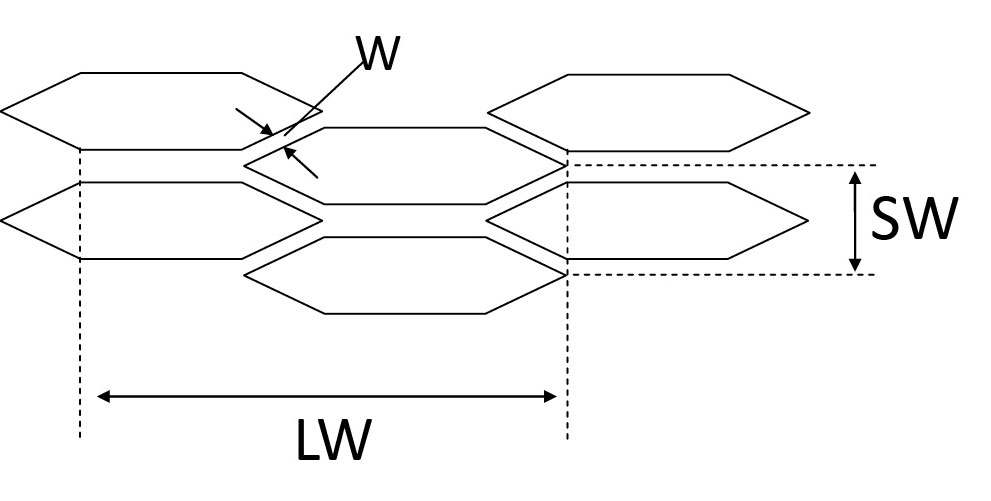

              Unit:mm
  SW   LW   Maximum Width(T)   Maximum Thickness(W)
  3   28   1220   0.5~1.0mm
  5   28   1220   0.5~1.2mm
  8.5   32   1220   0.5~2.0mm
  9   25   1525   0.8~3.0mm
  17   42   1220   0.8~3.0mm
  18   50   1220   0.8~3.0mm
  18   62   1220   0.8~3.0mm
  21   80   1220   0.8~3.0mm
  26   60   1220   0.8~3.0mm
  32   135.4   1525   0.8~6.0mm

Professional OEM manufacturer for custom expanded metal meshes and perforated metal meshes
