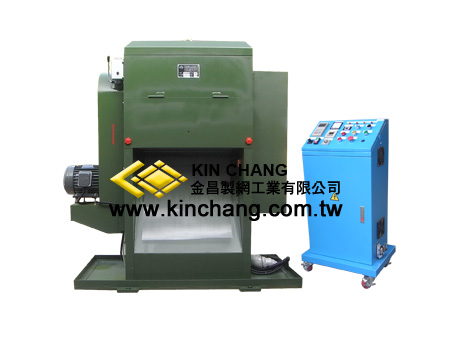

KC-24 Expanded metal machine (automatic)

Machine specification:
1. Maximum cutting width: 610 mm
2. Stroke per minute: 500 ~ 800
3. Material thickness: 0.3 ~ 1.2 mm
4. SW: 10 mm max.
5. Motor power: 5 ~ 7.5 hp

Expanded Metal Machine Comparison chart
MODEL	MAXIMUM CUTTING WIDTH	S.P.M	MATERIAL THICKNESS	MAXIMUM SW	MOTOR POWER
KC-96	2500 mm	60 ~ 200	0.4 ~ 8.0 mm	50 mm	20 ~ 75 hp
KC-60	1550 mm	100 ~ 300	0.4 ~ 8.0 mm	50 mm	20 ~ 75 hp
KC-48	1250 mm	300 ~ 500	0.3 ~ 3.0 mm	40mm	10 ~ 30 hp
KC-40	1000 mm	500 ~ 800	0.3 ~ 1.2 mm	12mm	10 ~ 20 hp
KC-24	610 mm	500 ~ 800	0.3 ~ 1.2 mm	10mm	5 ~ 7.5 hp
KC-18	500 mm	500 ~ 1000	0.3~ 0.8mm	8mm	5 ~ 7.5 hp
KC-12	305 mm	800~1000	0.12 ~ 0.5 mm	4 mm	5 ~ 7.5 hp
For more information about a specific expanded metal machine, please click the model name above.

Typical Expanded Metal Application:
Car grills	Machine guards	Enclosure	Fences	Cages

Lockers	Racks	Shelving	Ceiling panels	Doors

Baskets	Tool room	Flooring	Screening	Vents

Partitions	Platforms	Litter Bins	trays	Balcony railings


	Standard expanded metal mesh		Flattened expanded metal mesh		Expanded metal grating		Decorative expanded metal mesh
